 Post subject: Recommend a case...
PostPosted: Sat Aug 14, 2010 11:03 am
Offline

Joined: Thu Feb 03, 2005 9:21 am
Posts: 35
Location: Cooperstown, NY, USA
... that has a large rear-mounted fan BELOW the video card. While I would prefer mid-tower this might have to be a full-tower. This will be a high performance Intel 940/GTX 460 build, maybe SLI in the future, not "silent" but as quiet as humanly possible.

Why a fan there?

First of all, these video cards may have PCI slot exhausts, but still exhaust a lot of heat inside the case.

Second, assuming normal M/B orientation, most gaming cases rely on side fans to displace or remove heat below the video card(s). However side fans are not great for silence- they are in line-of-site (for me) for a floor placed tower, and they provide the fan with its own sounding board, not to mention another place for internal sound to exit.

My old Antec SLK3000B had terrible heat problems until I strapped an 80mm fan across the unused PCI slots. That is not going to work with the next build as I plan to have cards in those slots.

The best I can come up with is a HAF 932 with the P/S top mounted, and put a fan in the bottom-mount P/S slot.

Any better ideas? I have spent hours viewing cases on newegg.com and haven't come up with anything better.

Oh yeah, I am open to some case modding.

-HF :D

_________________
Antec 300 Modded, Quieted | ASUS M4A89GTD PRO/USB3 | AMD 550BE@3.356GHz unlocked to Quad Core | Scythe Mugen 2 | 2x1GB Corsair 1333 DDR3 | Corsair 400CX P/S bottom intake | 3xScythe Kama PWM 120mm fans | Thermalright 140mm 3-pin fan


Top
 Profile

 Post subject:
PostPosted: Sat Aug 14, 2010 12:05 pm
Offline

Joined: Wed Jul 20, 2005 10:56 am
Posts: 323
Location: USA
Cooler Master ATCS 840. Use a softmounted 120 mm on the stock external PCI slot exhaust, or a Noiseblocker Multiframe. The external box is cheap plastic, but if the fan you use is sufficiently vibration-proof it shouldn't be an issue.

_________________
ATCS840/ Seasonic X-750/ 2500k 4.4 GHz (Koolance CPU-370)/ Gigabyte z68xp-ud4/ eVGA 570 865,1730,1950 (Koolance VID-580)/ 8Gb G.Skill DDR3 1866/ Corsair Force 3 120Gb, Samsung 470 128 Gb, Scorpio Black 750 2.5" (Quiet Drive)/ EK DCP-2.2 (res., gel-stuff)/ XSPC RX360, Swiftech MCR220QP/ 3 Scythe GT ~300-550RPM, 3 NB Multi-frame ~400-600RPM, 3 230mm 300RPM-> Lamptron FC-4/ Akasa AcoustiPack


Top
 Profile

 Post subject:
PostPosted: Sat Aug 14, 2010 12:09 pm
Offline

Joined: Wed Jul 20, 2005 10:56 am
Posts: 323
Location: USA
Here:


_________________
ATCS840/ Seasonic X-750/ 2500k 4.4 GHz (Koolance CPU-370)/ Gigabyte z68xp-ud4/ eVGA 570 865,1730,1950 (Koolance VID-580)/ 8Gb G.Skill DDR3 1866/ Corsair Force 3 120Gb, Samsung 470 128 Gb, Scorpio Black 750 2.5" (Quiet Drive)/ EK DCP-2.2 (res., gel-stuff)/ XSPC RX360, Swiftech MCR220QP/ 3 Scythe GT ~300-550RPM, 3 NB Multi-frame ~400-600RPM, 3 230mm 300RPM-> Lamptron FC-4/ Akasa AcoustiPack


Top
 Profile

 Post subject:
PostPosted: Sat Aug 14, 2010 3:29 pm
Offline

Joined: Sat Apr 03, 2010 5:01 pm
Posts: 24
Location: New Hampshire, USA
I've designed a case that has an optional feature to blow cool air onto the video card area via a bottom fed air duct (the case has a solid side panel):



I guess you could do something similar (fabricate an air duct), as long as you start off with an extra wide case.

Good luck!

_________________
Rich
Custom Case Builder


Top
 Profile

 Post subject:
PostPosted: Sun Aug 15, 2010 1:25 am
Offline

Joined: Tue Jul 10, 2007 10:35 pm
Posts: 488
Location: Israel
Quote:
The best I can come up with is a HAF 932 with the P/S top mounted, and put a fan in the bottom-mount P/S slot.

Any better ideas? I have spent hours viewing cases on newegg.com and haven't come up with anything better.


690 II could be a good choice. If you add 2 bottom fans (partly remove hd cage) it becomes filtered positive pressure. most hot air frop PCI cards will be pushed out the side and back vents. PSU could stay at the bottom. Looks better too IMO.

Raven reviews by SPCR here
http://www.silentpcreview.com/silverstone-raven
had a flipped mobo that vents out the top but is a bit wierd looking.

_________________
DAW - Antec P150, i7 2600K @ 4.4 GHz , Intel DP67BG, Crucial C300 SATA 3 SSD, Passive Geforce 8500GT, Samsung F1 1TB audio drive, Seasonic S12II520, TRUE+AC PWM@500RPM, Noctua 120@700 RPM
Video Edit- Antec P183, i7 2600, Intel DP67BG, Quadro 2000, Samsung 500GB system, 2*WB 1TB RAID 0, TRUE, Seasonic S12II620


Top
 Profile

 Post subject:
PostPosted: Sun Aug 15, 2010 5:35 am
Offline
Site Admin

Joined: Sun Aug 11, 2002 3:26 pm
Posts: 11830
Location: Vancouver, BC, Canada
The rotated mobo Silverstone cases are good options for you, imo. see the fortress02 and raven02 reviews here.
http://www.silentpcreview.com/section9.html

_________________
Mike Chin,
Editor/Publisher, SPCR
Support SPCR with your donations!


Top
 Profile

 Post subject:
PostPosted: Sun Aug 15, 2010 6:10 am
Offline

Joined: Tue Jul 10, 2007 10:35 pm
Posts: 488
Location: Israel
Yeah Mike,
Knew you would comment on that. The Frotress 02 looks perfect for what OP wanted.

_________________
DAW - Antec P150, i7 2600K @ 4.4 GHz , Intel DP67BG, Crucial C300 SATA 3 SSD, Passive Geforce 8500GT, Samsung F1 1TB audio drive, Seasonic S12II520, TRUE+AC PWM@500RPM, Noctua 120@700 RPM
Video Edit- Antec P183, i7 2600, Intel DP67BG, Quadro 2000, Samsung 500GB system, 2*WB 1TB RAID 0, TRUE, Seasonic S12II620


Top
 Profile

 Post subject:
PostPosted: Sun Aug 15, 2010 10:27 am
Offline

Joined: Mon Jun 08, 2009 2:41 pm
Posts: 734
Location: the ether
great thread, thanks for the ideas.

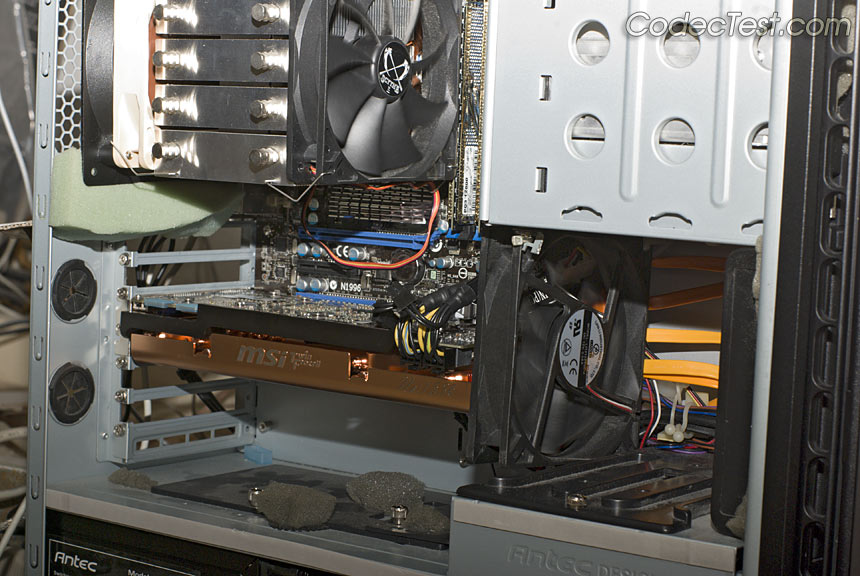

here is how i handled hot air from the gpu... i7-920 @3.9ghz, p183 in a positive pressure configuration, 3 fans blowing in, no exhaust fan per se, msi gtx465 unlocked to gtx470, running unlocked gpu voltage @1.21v(factory 1.087v max).

the fan behind the card is blowing directly across the cooling fins, and it helps to exhaust the heat out the case to some degree... the video card exhausts most of the hot air right out the top of two holes in the pcb, it's a twin-fan card.

silverstone would be a much better option for a positive pressure build, due to the big fans, but i've seen arguments claiming that rotating the guts around could have a negative effect on the life of some types of fan bushings(probably a trivial concern)... the bigger question is where the fluid inside the coolers flows when they are turned in a non-standard direction, and whether that could effect the cooling????



Top
 Profile

 Post subject:
PostPosted: Sun Aug 15, 2010 2:00 pm
Offline

Joined: Tue Mar 23, 2004 3:26 pm
Posts: 1162
Location: UK
danimal wrote:
the bigger question is where the fluid inside the coolers flows when they are turned in a non-standard direction, and whether that could effect the cooling????

I don't think it matters too much - heat pipes in current coolers are designed to work by means of capillary action in the internal wicking material rather than convection, so the orientation will have little if any effect. :)


Top
 Profile

 Post subject: Re: Recommend a case...
PostPosted: Mon Aug 16, 2010 2:58 pm
Offline

Joined: Fri Sep 19, 2008 1:39 pm
Posts: 307
Location: Toronto, Canada
Hangfire wrote:
... that has a large rear-mounted fan BELOW the video card.

Heat rises, so it shouldn't be above the video card?

A fan blowing perpendicular thru the back of the card (in the HD bays or something) should suffice, as with my 4850 w/S1.

Hangfire wrote:
Oh yeah, I am open to some case modding.

Get a top PSU mid/full tower case and flip it? :P

_________________
Antec 302-S Project
Solo PC with flipped PSU & Mobo
Basement PC flipped and converted



Top
 Profile

 Post subject:
PostPosted: Mon Aug 16, 2010 9:49 pm
Offline

Joined: Mon Jun 08, 2009 2:41 pm
Posts: 734
Location: the ether
"The second benchmark segment begins by simply turning the test system vertically upright, so that the motherboard and CPU are facing to the side. Many of the products we have tested utilize a "U" pattern in the heat-pipe rods, and the upright system orientation favors this particular product design because it removes the effect of gravity on the heat-pipes' thermal cycle."
http://benchmarkreviews.com/index.php?o ... mitstart=9


Top
 Profile

 Post subject:
PostPosted: Tue Aug 17, 2010 12:30 pm
Offline

Joined: Thu Aug 05, 2010 4:38 pm
Posts: 298
Location: ontario
maybe a lian li pc-a05nb with one of lian li's pci slot coolers in the top 2 slots?

(they make other coolers, but this was the first pic i found.)


Top
 Profile

 Post subject:
PostPosted: Tue Aug 17, 2010 8:04 pm
Offline

Joined: Thu Feb 03, 2005 9:21 am
Posts: 35
Location: Cooperstown, NY, USA
warriorpoet wrote:
Here:



ROFL. Did you ever read Kidder's Soul of a New Machine?
http://www.amazon.com/Soul-New-Machine-Tracy-Kidder/dp/0316491977

That's really "hanging a bag" on the side of a computer!

Anyway, when I said I wanted to use the other PCI slots, I mean BOTH .sides of the PCI slots! :roll: (Often and easily,)

-HF

_________________
Antec 300 Modded, Quieted | ASUS M4A89GTD PRO/USB3 | AMD 550BE@3.356GHz unlocked to Quad Core | Scythe Mugen 2 | 2x1GB Corsair 1333 DDR3 | Corsair 400CX P/S bottom intake | 3xScythe Kama PWM 120mm fans | Thermalright 140mm 3-pin fan


Last edited by Hangfire on Tue Aug 17, 2010 8:15 pm, edited 1 time in total.

Top
 Profile

 Post subject: Re: Recommend a case...
PostPosted: Tue Aug 17, 2010 8:11 pm
Offline

Joined: Thu Feb 03, 2005 9:21 am
Posts: 35
Location: Cooperstown, NY, USA
speedkar9 wrote:
Hangfire wrote:
... that has a large rear-mounted fan BELOW the video card.

Heat rises, so it shouldn't be above the video card?


Good question. The cards I have vent some hot air through the second PCI vent, and a lot more into the case below the card. Besides there is already a 120mm fan above the top card on most cases.

This system (whatever it turns out to be) will have huge amounts of air in and out, it won't have much time to rise.

On my SLK3000B/8800Ultra combination, there was an extreme "hot pocket" below the video card, and convection and two 120mm front input fans (one in a Kama Bay) and open PCI slots didn't help it a bit. The temp sensor on the lower part of the M/B was reading higher than my CPU!

I tried one, then two of those useless PCI slot fans. The first one brought GPU temps down from 99-100C to 95C, the second to 94C. Then I pulled them and I strapped an 80mm gaming fan across all the PCI slots. That fixed the problem.
speedkar9 wrote:
A fan blowing perpendicular thru the back of the card (in the HD bays or something) should suffice, as with my 4850 w/S1.


Yeah but I am talking nVidia cards here...

speedkar9 wrote:
Hangfire wrote:
Oh yeah, I am open to some case modding.

Get a top PSU mid/full tower case and flip it? :P


I am seriously considering that. I would do it with my extra Three Hundred except there's not much meat to work with if I leave the P/S at the bottom. I'll be splicing sheet metal instead of just re-riviting it. Still, I may try it. It's only $50!

-HF

_________________
Antec 300 Modded, Quieted | ASUS M4A89GTD PRO/USB3 | AMD 550BE@3.356GHz unlocked to Quad Core | Scythe Mugen 2 | 2x1GB Corsair 1333 DDR3 | Corsair 400CX P/S bottom intake | 3xScythe Kama PWM 120mm fans | Thermalright 140mm 3-pin fan


Last edited by Hangfire on Tue Aug 17, 2010 8:41 pm, edited 2 times in total.

Top
 Profile

 Post subject:
PostPosted: Tue Aug 17, 2010 8:16 pm
Offline

Joined: Thu Feb 03, 2005 9:21 am
Posts: 35
Location: Cooperstown, NY, USA
danimal wrote:
"The second benchmark segment begins by simply turning the test system vertically upright, so that the motherboard and CPU are facing to the side. Many of the products we have tested utilize a "U" pattern in the heat-pipe rods, and the upright system orientation favors this particular product design because it removes the effect of gravity on the heat-pipes' thermal cycle."
http://benchmarkreviews.com/index.php?o ... mitstart=9


Yes, this is why I am a bit leary of inverted M/B systems. My X38 gaming M/B has a lot of heat pipes on it.

-HF

_________________
Antec 300 Modded, Quieted | ASUS M4A89GTD PRO/USB3 | AMD 550BE@3.356GHz unlocked to Quad Core | Scythe Mugen 2 | 2x1GB Corsair 1333 DDR3 | Corsair 400CX P/S bottom intake | 3xScythe Kama PWM 120mm fans | Thermalright 140mm 3-pin fan


Top
 Profile

 Post subject:
PostPosted: Tue Aug 17, 2010 8:17 pm
Offline

Joined: Thu Feb 03, 2005 9:21 am
Posts: 35
Location: Cooperstown, NY, USA
ame wrote:
Yeah Mike,
Knew you would comment on that. The Frotress 02 looks perfect for what OP wanted.


If only the price were a *little* lower...

-HF

_________________
Antec 300 Modded, Quieted | ASUS M4A89GTD PRO/USB3 | AMD 550BE@3.356GHz unlocked to Quad Core | Scythe Mugen 2 | 2x1GB Corsair 1333 DDR3 | Corsair 400CX P/S bottom intake | 3xScythe Kama PWM 120mm fans | Thermalright 140mm 3-pin fan


Top
 Profile

 Post subject:
PostPosted: Tue Aug 17, 2010 8:28 pm
Offline

Joined: Thu Feb 03, 2005 9:21 am
Posts: 35
Location: Cooperstown, NY, USA
Thanks, MikeC and everyone, for all the great ideas.

I just found a case that is very nearly what I want. It has space for 2x80mm fans below the M/B. It is even a silencing oriented case.

The only problem is that they put a partition in between, but a little modding would take care of that.

http://www.quietpcusa.com/NZXT-Whisper- ... 92C55.aspx

http://www.newegg.com/Product/ImageGall ... ter%20Case

The pricing is also right, however I am not thrilled about the styling. I don't mind hack-n-slash modding inside the case, but I'm not so good with cosmetics and I prefer an understated outer appearance. (Thus my recent infatuation with the Antec Three Hundred).

A review of the case had the reviewers breaking the fragile USB pop-up, and the front door makes bay mounted USB problematic. Among other things I do need reliable front USB. I guess the biggest issue is that I really don't like front doors that much. After accidentally breaking them off of both an Antec SoHo case and a SLK3000B, and not missing them after that, I have come to realize that I really don't like my optical drive or USB behind a door.

On the plus side, I could put TWO Kama Bay fans in the front of that puppy!

So, I am still open to other suggestions.

-HF

_________________
Antec 300 Modded, Quieted | ASUS M4A89GTD PRO/USB3 | AMD 550BE@3.356GHz unlocked to Quad Core | Scythe Mugen 2 | 2x1GB Corsair 1333 DDR3 | Corsair 400CX P/S bottom intake | 3xScythe Kama PWM 120mm fans | Thermalright 140mm 3-pin fan


Top
 Profile

 Post subject:
PostPosted: Tue Aug 17, 2010 8:35 pm
Offline

Joined: Thu Feb 03, 2005 9:21 am
Posts: 35
Location: Cooperstown, NY, USA
warriorpoet wrote:
Cooler Master ATCS 840. Use a softmounted 120 mm on the stock external PCI slot exhaust, or a Noiseblocker Multiframe. The external box is cheap plastic, but if the fan you use is sufficiently vibration-proof it shouldn't be an issue.


Thanks, warriorpoet. The ATCS 840 looks like a real candidate, I don't see the more-than-50% occluded PCI vent area as being that useful, but I could top mount the P/S and vent through the bottom P/S mount.

But, I was really hoping for a bottom mount system, and keep it that way...

I know, I'm picky. But what really boggles my mind, there must literally be a Thousand case variations out there, and no one has thought to do this.

-HF

_________________
Antec 300 Modded, Quieted | ASUS M4A89GTD PRO/USB3 | AMD 550BE@3.356GHz unlocked to Quad Core | Scythe Mugen 2 | 2x1GB Corsair 1333 DDR3 | Corsair 400CX P/S bottom intake | 3xScythe Kama PWM 120mm fans | Thermalright 140mm 3-pin fan


Top
 Profile

 Post subject:
PostPosted: Tue Aug 17, 2010 8:43 pm
Offline

Joined: Thu Feb 03, 2005 9:21 am
Posts: 35
Location: Cooperstown, NY, USA
fumino wrote:
maybe a lian li pc-a05nb with one of lian li's pci slot coolers in the top 2 slots?


Thanks, fumino. That looks like one industrial strength dual-slot PCI slot fan.

However, I am looking to use most or all of my PCI/PCIe slots, two for SLI (eventually) and a 3Ware card and some other stuff.

-HF

_________________
Antec 300 Modded, Quieted | ASUS M4A89GTD PRO/USB3 | AMD 550BE@3.356GHz unlocked to Quad Core | Scythe Mugen 2 | 2x1GB Corsair 1333 DDR3 | Corsair 400CX P/S bottom intake | 3xScythe Kama PWM 120mm fans | Thermalright 140mm 3-pin fan


Top
 Profile

 Post subject:
PostPosted: Tue Aug 17, 2010 8:48 pm
Offline

Joined: Mon Jun 08, 2009 2:41 pm
Posts: 734
Location: the ether
the p183 is a quieter case, but it'll cost more, since it's not on sale right now.

this is what i'm doing to put a couple of fans under the video card(s), but it's not what you want:
Scythe Kama Stay multi purpose solution
http://www.newegg.com/Product/Product.a ... 6811998071


Top
